Auto Edge Alignment Inspection

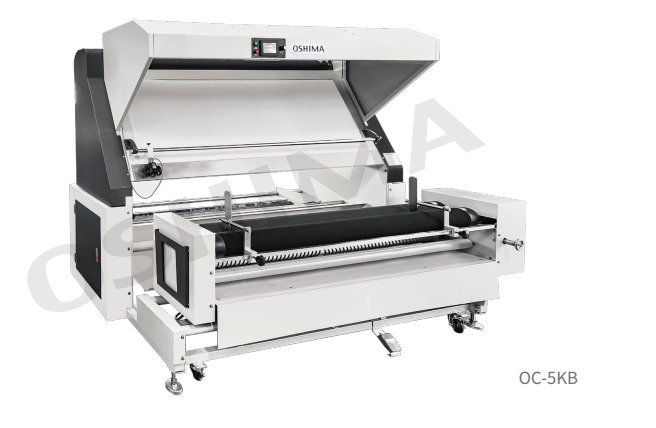

Oshima OC-5B/5K/KB
Achieve tension-free inspection of knit fabrics with our knit inspection machines equipped with tension control. It is equipped with a digital measuring device which can measure the length of the fabric with an accuracy of 0.1 yard. Edge alignment is achieved through mechanical screw-type, with rolling speed and alignment not as fast as OC-83. One main motor and one edge alignment motor complete the machine. Upgrade your inspection process with our knit inspection machines.
Specification
ModelOC-5B / OC-5K / OC-5KB
BrandOshima
Power supply1P/220V / 1P/220V / 1P/220V
Fabric diameter (mm)400 / 400 / 400
Weight of cloth roll (kg)100 / 100 / 100
Width of roller (mm/inch)2108/83'' / 2108/83'' / 2108/83''
Speed for inspection (yard/min)0~35 / 0~35 / 0~35
Dimensions LxWxH (mm)2600x1300x1800 / 2600x1300x1800 / 2600x1300x1800
Packaging volume LxWxH (mm)2820x1470x2090 / 2820x1470x2090 / 2820x1470x2090
N.W/G.W (kg)370 / 355 / 395
