Checkweigher

Oshima CW150/220/300

Needle Detection & Weighing

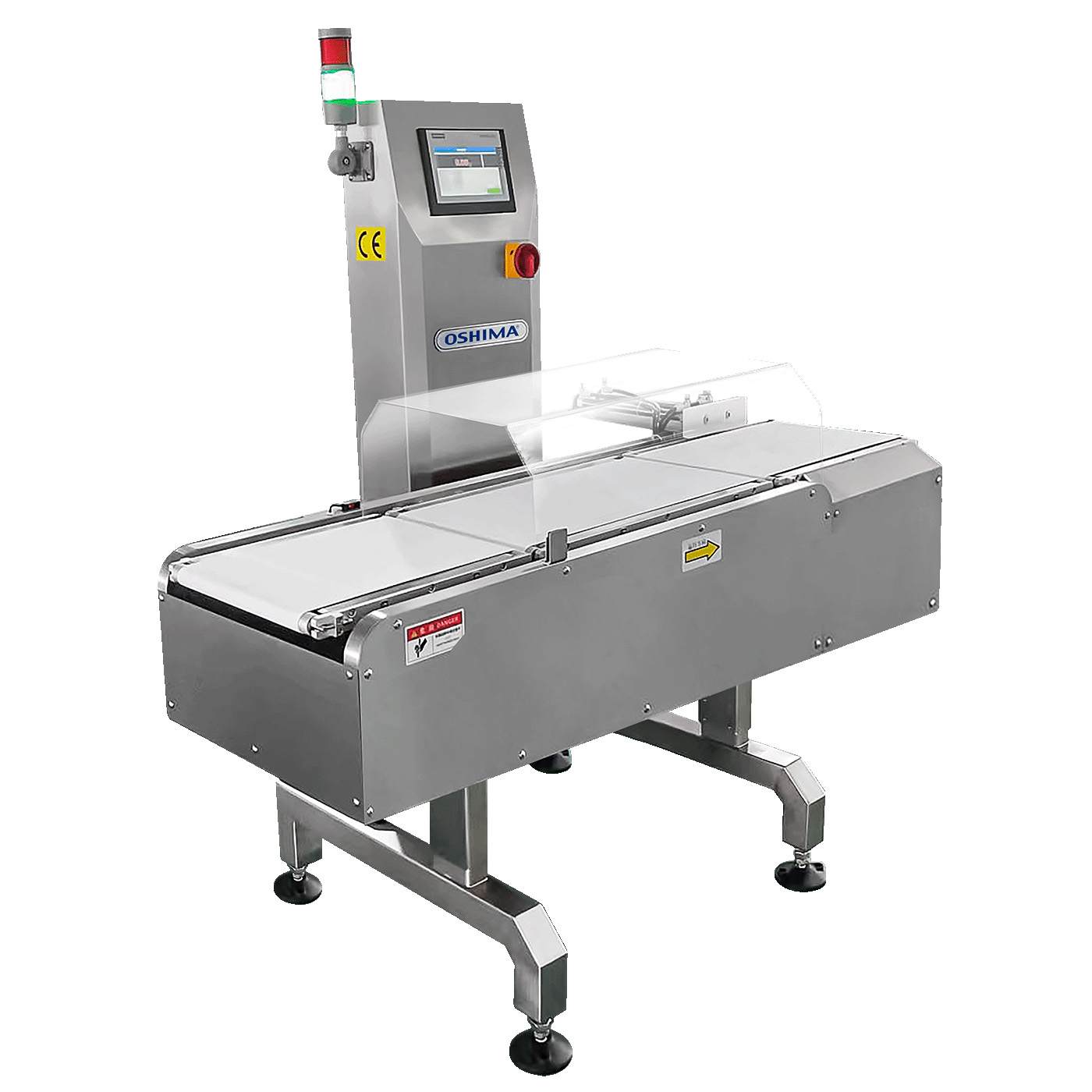

Checkweigher  اوشیما Oshima CW150/220/300

Ensure precision weight control in food production with our advanced industrial checkweigher, engineered for Regulation (EC) 1935/2004, Regulation (EU) 10/2011, and FDA compliance. Designed for high-speed inline weighing, this system achieves an accuracy of ±0.3g, ensuring each product meets strict weight regulations while minimizing waste. The full-color touchscreen interface supports eight languages, making operation intuitive and efficient. Its hygienic stainless steel structure allows for easy cleaning and maintenance, reducing downtime and ensuring compliance with food safety standards.

Specification
ModelCW-150 / CW-220 / CW-300
BrandOshima
Power supply1P/220V 50HZ
Motor (W)120 / 140 / 280
Detective width (mm)150 / 220 / 300
IP standard/waterproofIP-54
Working temperature (°C)Below 40
Maximum humidity (%)85
Belt speed (m/min)5-85 / 5-85 / 5-60
Weight capacity (g)3-300 / 3-1200 / 5-3000
Max speed (packages/min)198 / 180 / 150
Length limit (mm)180 / 250 / 330
Accuracy Max (g)±0.3 / ±0.3 / ±0.5
Dimensions LxWxH (mm)1050x711x1550 / 1150x810x1550 / 1500x741x1550
N.W (kg)80 / 95 / 110
